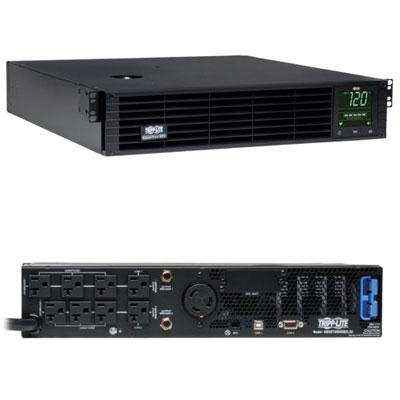

3000VA / 3kVA 120V line interactive 2U rack / tower UPS offers complete network-grade power protection with full support for hot-replacement of separate internal battery and electronics modules. High .96 power factor supports loads up to 2880 watts. High efficiency rating of 96% reduces electrical operating cost and BTU emissions. Supports 120V 60Hz operation. Maintains battery derived sine wave AC output during power failures. Line-interactive dual-boost single cut automatic voltage regulation (AVR) provides regulated 120V nominal output during brownouts and overvoltages. Includes NEMA L5-30P input plug and 9 UPS-supported output receptacles (8 x 5-15/20R 1 x L5-30R). Includes two individually controllable switched outlets for advanced remote-reboot and load-shedding applications. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB DB9 serial and card slot for optional SNMPWEBCARD and other card accessories. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels self-test data and utility power conditions via all three network interfaces at once. Advanced LED indicators offer 3-stage metering of UPS load and battery charge levels plus single-LED status indicators for utility power voltage regulation on-battery and replace battery. Audible alarms provide notification of on-battery low-battery and overload conditions. Includes PowerAlert auto-shutdown and management software for complete monitoring reporting and logging of all site and UPS operational conditions plus support for advanced configurations involving load-shedding remote-reboot and redundant dual-UPS applications. Internal batteries offer runtime of 10 minutes half load (1440 watts) and 3 minutes at full load (2880 watts). Runtime is expandable with optional BP48V24-2U (limit 1) and BP48V60RT3U (unlimited) external battery packs. Supports installation in 4 post racks with included accessories. 2 post rackmount wallmount and tower stand accessories sold separate. 2-year warranty and $250 000 connected equipment insurance; extended warranty and service contracts available. 3000VA / 3kVA 120V line interactive 2U rack / tower UPS for networks High power factor of .96 offers support for loads to 2880 watts High efficiency line power operation of 96% reduces UPS electrical operating cost and BTU emissions Supports selectable 120V nominal voltage operation at 60 Hz Sine wave AC output in AC and battery modes Line interactive UPS with Automatic Voltage Regulation (AVR) L5-30P input plug connects to 120V 30A utility receptacle Includes 9 UPS supported outlets (8 5-15/20R and 1 L5-30R) L5-30R outlet is ideal for the connection of a 120V 30A PDU to distribute the full UPS capacity to rack equipment Two designated 5-15/20R outlets are individually controllable to support remote reboot or automated load shedding of less critical items Network-grade 570 joule AC surge suppression USB DB9 serial and card-slot accessory are all available for simultaneous use in advanced network configurations HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X Includes PowerAlert auto-shutdown and management software for complete monitoring reporting and logging of all site and UPS operational conditions plus support for advanced configurations involving load-shedding remote-reboot and redundant dual-UPS applications Advanced LED indicators offer 3-stage metering of UPS load and battery charge levels plus single-LED status indicators for utility power voltage regulation on-battery and replace battery. Audible alarms provide notification of on-battery low-battery and overload conditions Audible alarms provide notification of on-battery low-battery and overload conditions Internal batteries offer runtime of 10 minutes half load (1440 watts) and 3 minutes at full load (2880 watts) Runtime is expandable with optional BP48V24-2U (limit 1) and BP48V60RT3U (no limit) external battery packs Supports 4 post rackmount installation with included accessories; add 2POSTRMKITWM for 2 post and wallmount applications; add 2-9USTAND accessory for upright tower support 2-year warranty and $250 000 connected equipment insurance; extended warranty and service contracts available Applications Ideal for server networking and telecommunications applications in rackmount wallmount or tower format Package Includes UPS power module with internal batteries PowerAlert Software with USB DB9 and EPO cabling 4 post rackmount installation accessories Owner’s manual with warranty information
